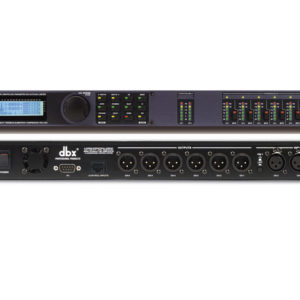

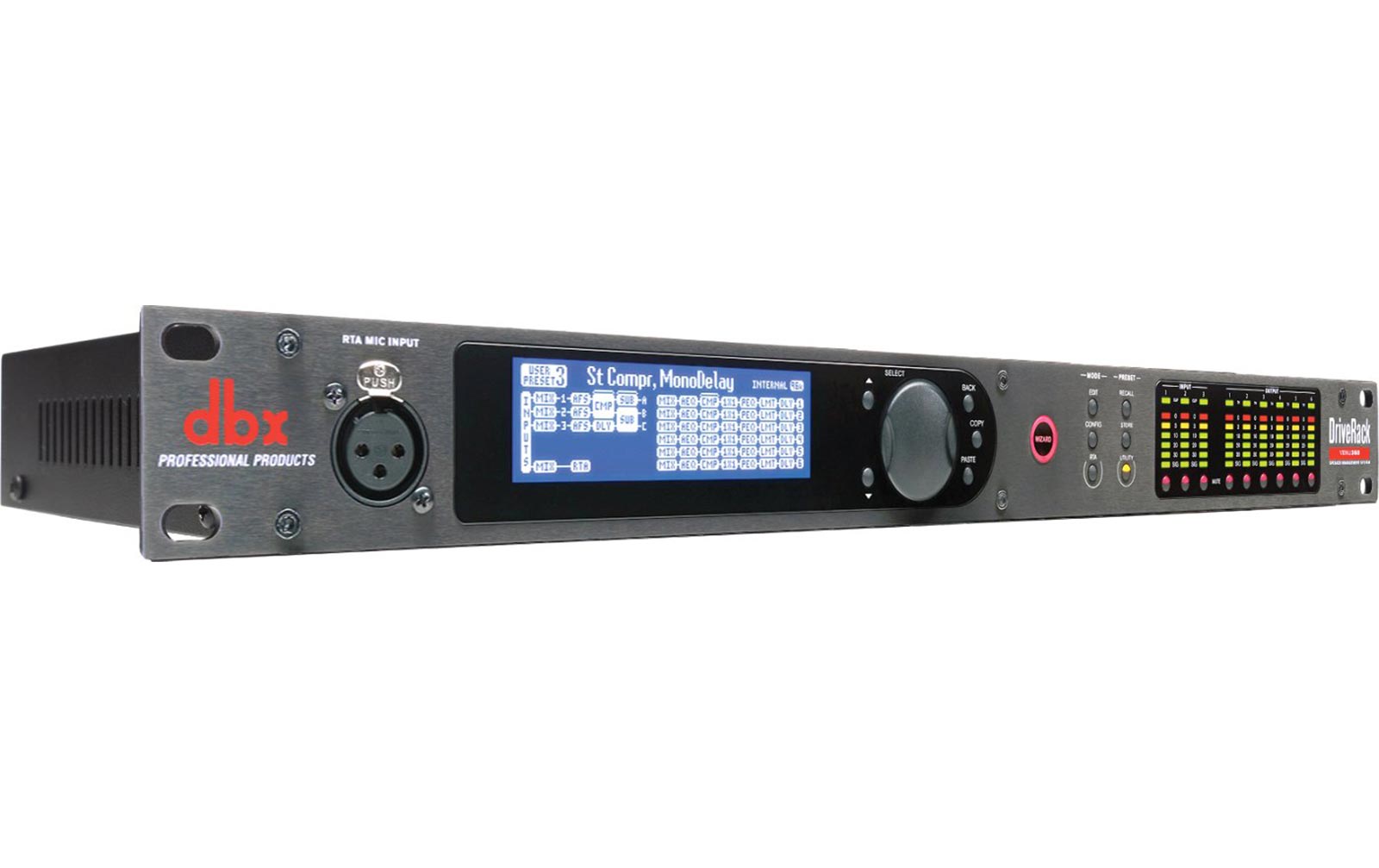

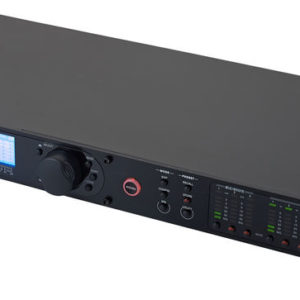

    dbx Venu 360 Speaker Management

    The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

    Add to Wishlist
    Category:
    Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
    Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
    Input Type Electronically balanced/RF filtered
    Input Impedance > 30 kΩ, balanced line to line
    Max Input Level (line inputs) > +28 dBu, balanced, ≤1% THD
    CMRR > 50 dB @ 1 kHz
    RTA Mic Preamp Phantom Power +48 VDC
    Output (6) Line Outputs
    Output Connectors Male XLR
    Output Type Electronically balanced, RF filtered
    Output Impedance 120 Ω, balanced line to line
    Max Output Level +22 dBu, balanced, ≤1% THD
    Alignment Delay Up to 1000 ms per output channel
    A/D Converter 24-bit with dbx Type IV™ Conversion System
    A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
    Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
    D/A Converter 24-bit
    D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
    Internal Processing Wordlength 32-bit floating point
    Supported Sample Rates 48/96 kHz (32-192 kHz using sample rate conversion)
    System Performance Dynamic Range 114 dB A-weighted; 110 dB unweighted
    THD+Noise 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
    Frequency Response 20 Hz – 20 kHz, +0 /- 0.5 dB
    Interchannel Crosstalk < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
    Latency Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
    Operating Voltage 100-240 VAC 50/60 Hz
    Power Consumption 18 W
    Dimensions 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
