RCF HDL10 array
The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.
Frequency Response: 65 Hz ÷ 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°

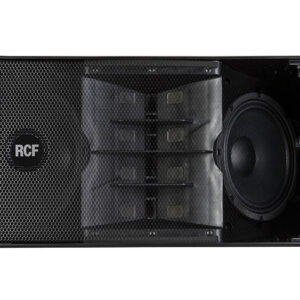

Compression Driver: 2.0”, 2.5” v.c
Woofer: 2 x 8”, 2.0” v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Crossover frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter

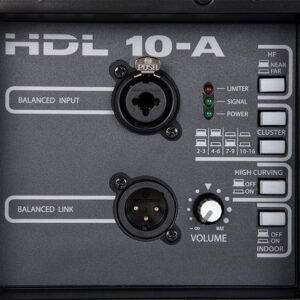

Controls: Cluster, HF, High curving, Indoor
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: PP Composite

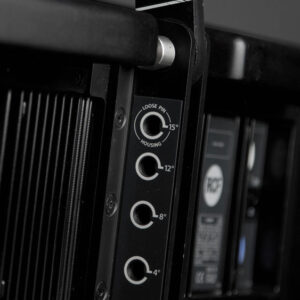

Hardware: Rigging flyware
Handles: 2 side
Grille: Steel
Color: Black
Height: 294 mm / 11.57 inches
Width: 569 mm / 22.4 inches
Depth: 434 mm / 17.09 inches
Weight: 20.4 kg / 44.97 lbs
