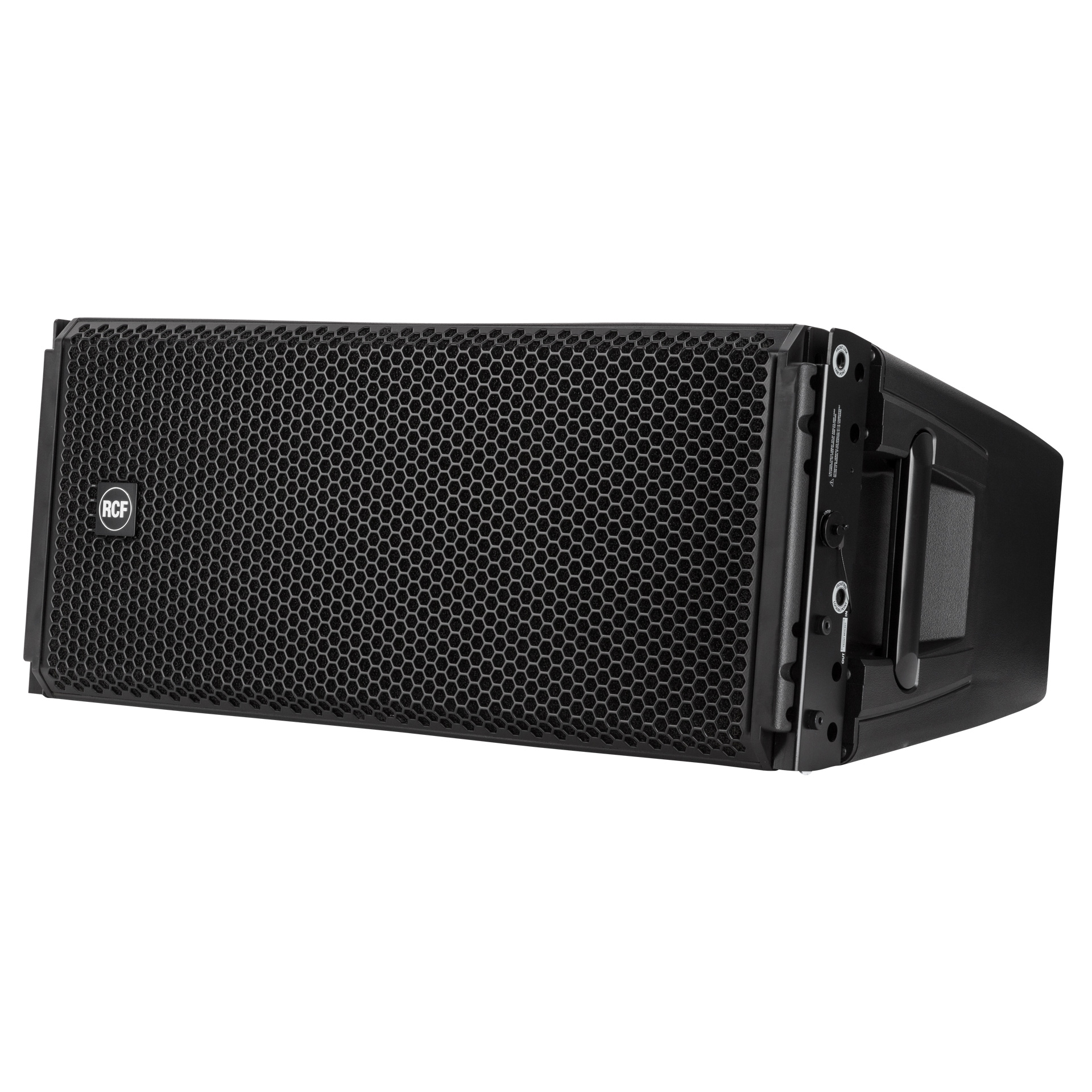

RCF HDL-30A
The RCF HDL 30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response.
Frequency Response:50 Hz – 20000 Hz
Max SPL @ 1m:137 dB
Horizontal coverage angle:100°
Vertical coverage angle:15°
Transducers Compression Driver:1.4” neo, 4.0” v.c
Woofer:2 x 10” neo, 2.5” v.c

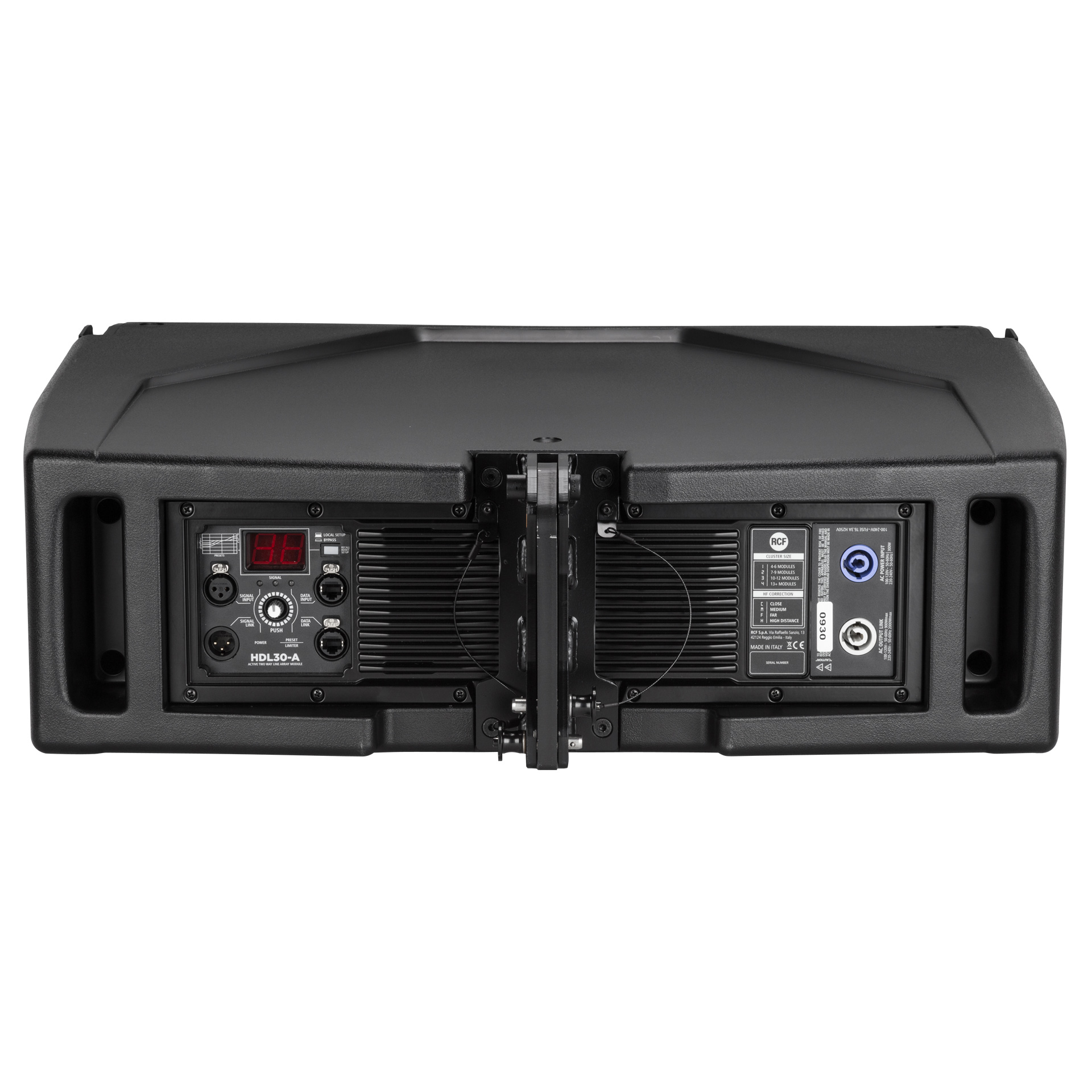

Input/Output section
Input signal:bal/unbal
Input connectors:XLR, RDNet Ethercon
Output connectors:XLR, RDNet Ethercon
Input sensitivity:+4 dBu
Processor section
Crossover frequencies:680 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Preset, RDNet bypass
RDNet:Yes
Power section
Total Power:2200 W Peak, 1100 W RMS
High frequencies:600 W Peak, 300 W RMS
Low frequencies:1600 W Peak, 800 W RMS
Cooling:Forced
Connections:Powercon IN/OUT
| days for delivery | After order it takes about four(4) weeks before delivery |
|---|
